Passive BNC cable Transmit ITU Video signal Transceiver

The product you selected is currently unavailable.

Price: $9.50
Prod. Code: ITU-0704A

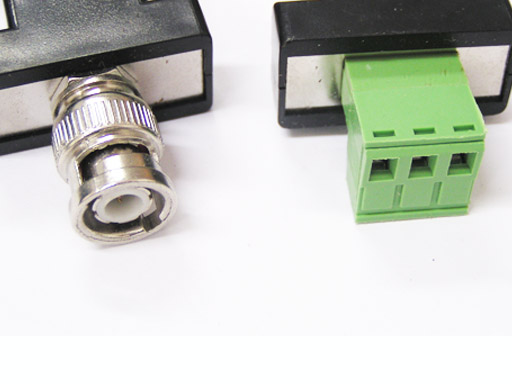

Passive BNC Transmit Video Signal Image Transceiver

Specification:
1. Transmit signals: ITU/CCITT G.703 or VIDEO
2. Connector:male/female BNC(75ohm),8P8C RJ-45(120ohm),3connect poles(120ohm twisted pair)
3. Transmit rate:0-2.048Mbps(VIDEO 0-6MHz)
4. Input loss< 0.3dB(510KHZ-6MHZ)
5. Back loss> 25dB (510KHZ-6MHZ)
6. Working temperature: -5 DegC to 55 DegC
